Features

Heavy-duty construction

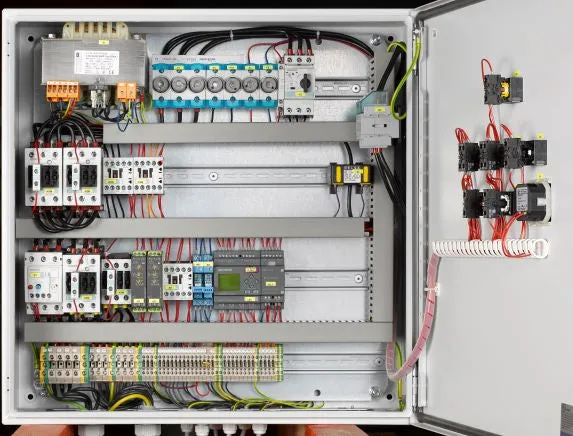

Plug-and-play design
Delta start for low energy consumption
Universal chip size
Patented V-Rotor system
Low maintenance
4x Indexable knives
Hydraulic ram
Universal joint for hydraulic cylinder

The throughput rate depends on material and screen size. Special configurations are available.

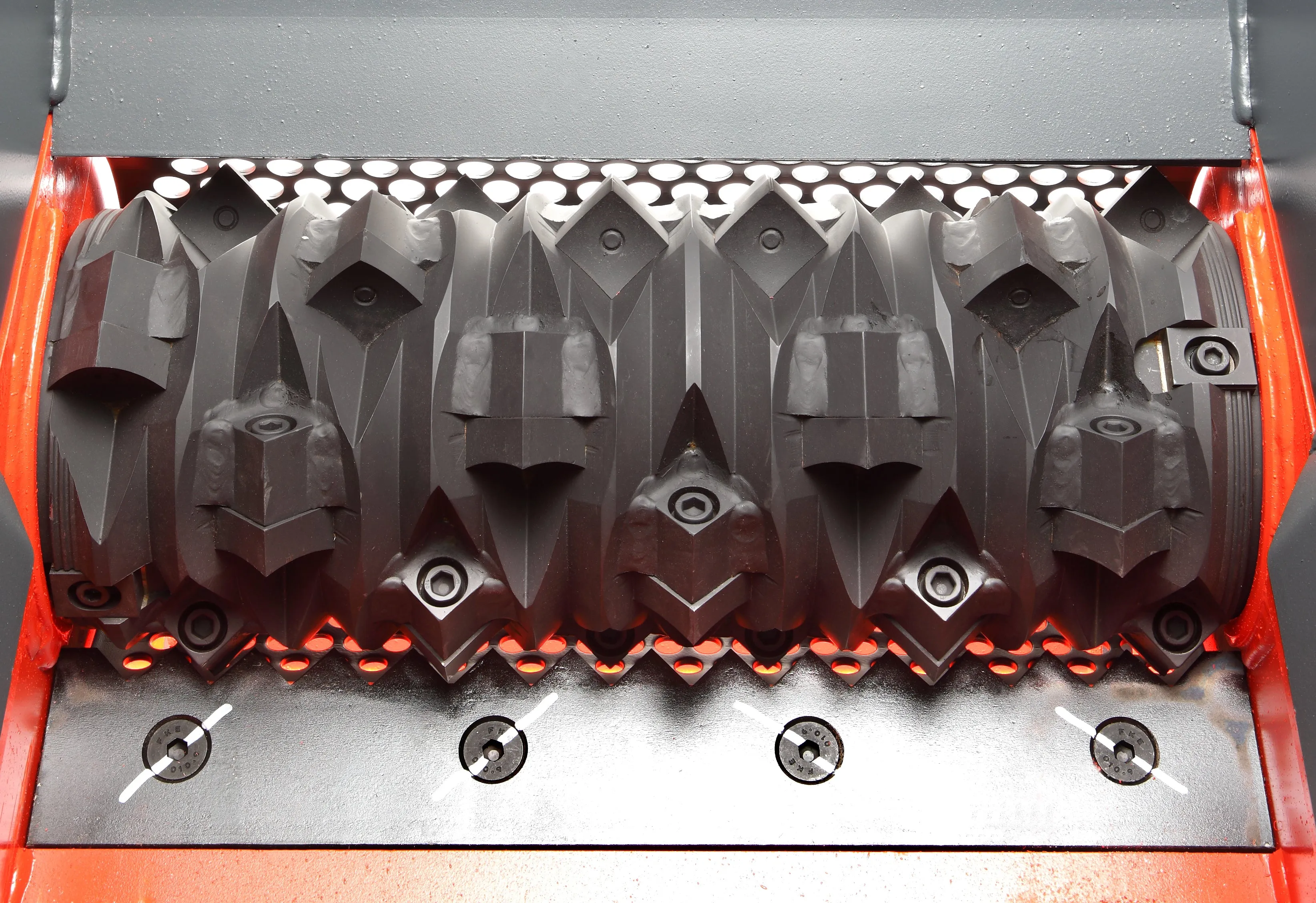

ROTOR and KNIVES

• Welded knife holders
• V-rotor – 4x indexable knives and broaching knives
• Carbide tips are optional
• Rotor cooling available for low melt point materials

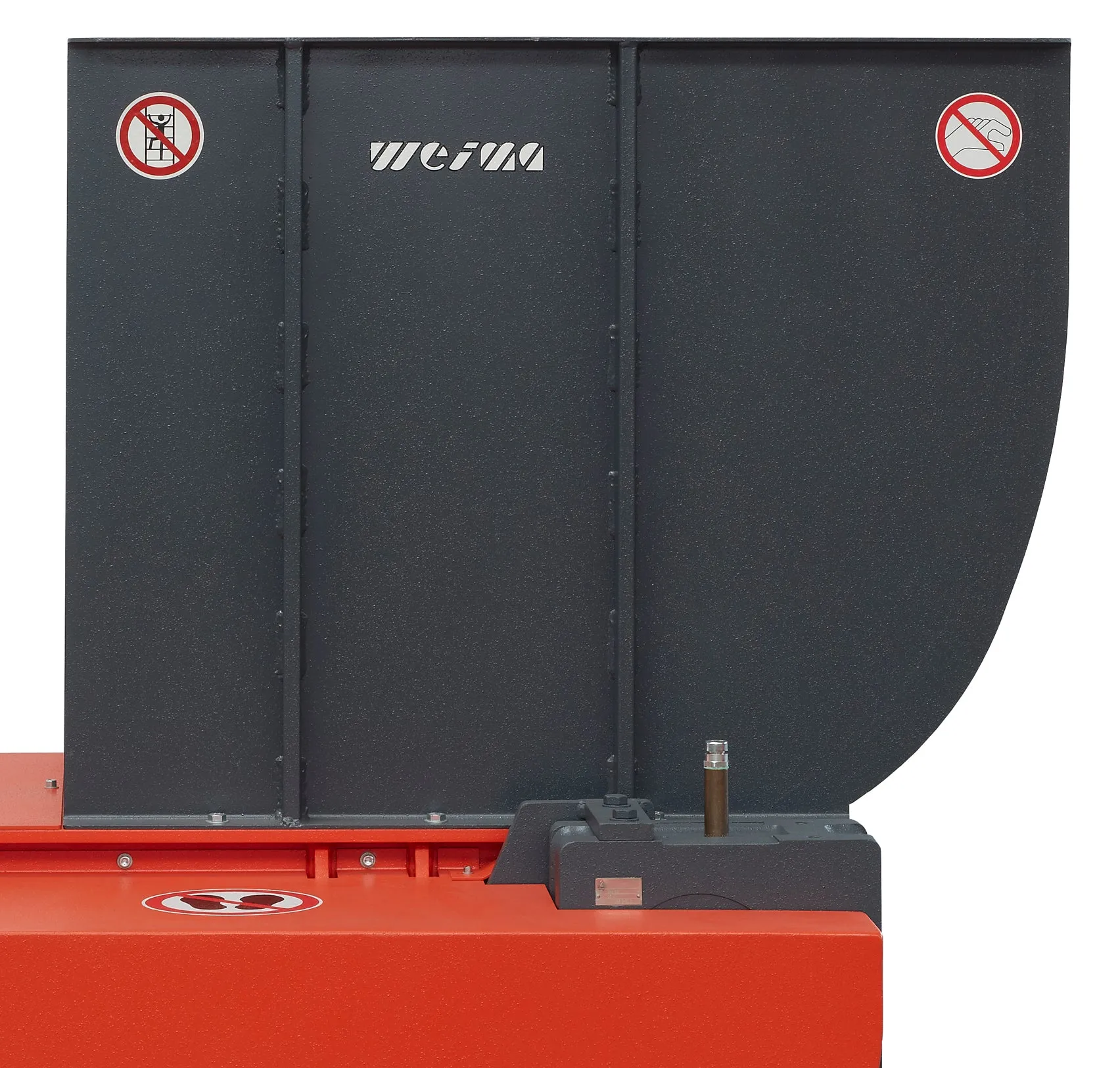

HOPPER

• Log spacer design prevents bridging
• Ideal for hand-feeding, or loading by forklift or conveyor

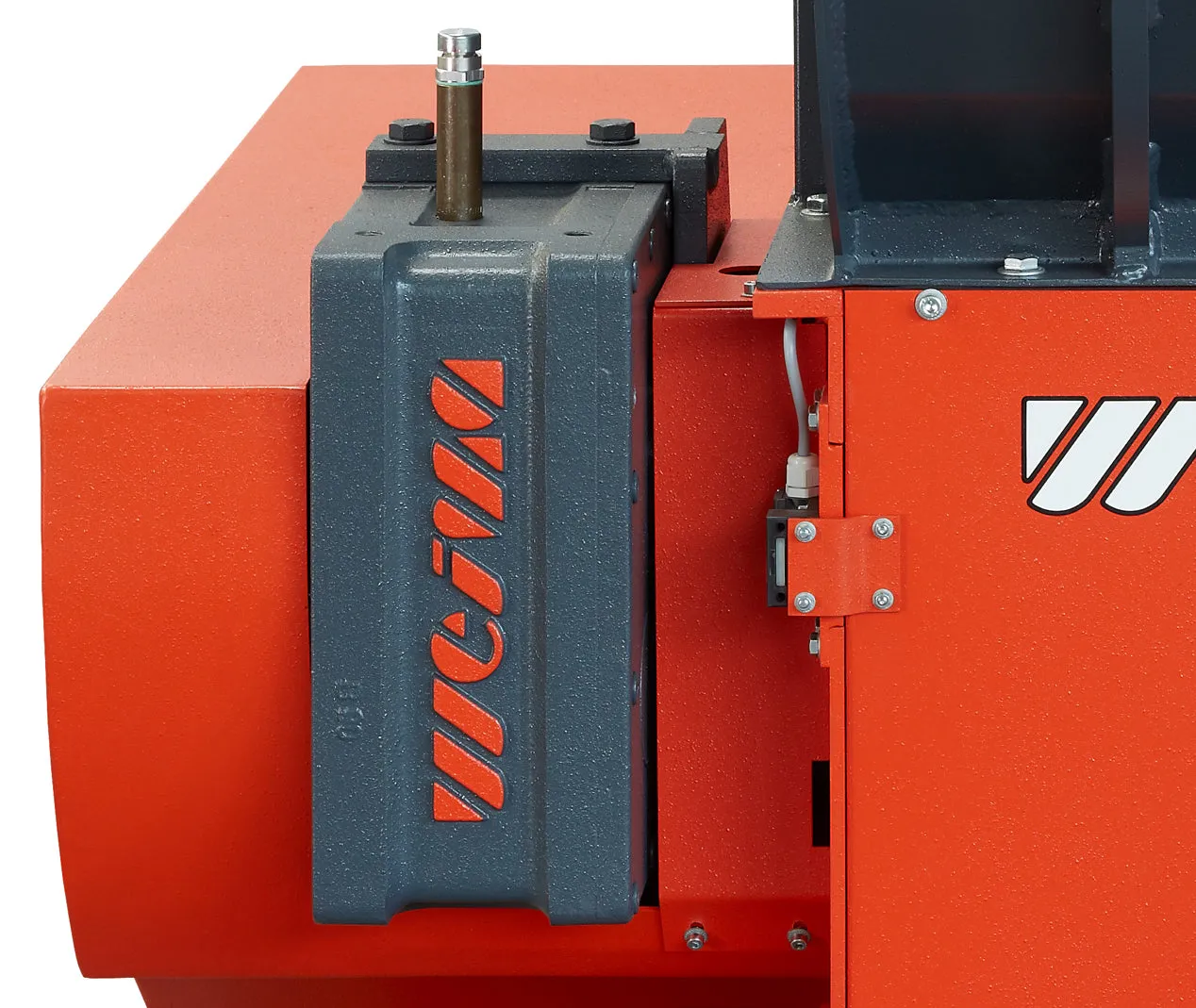

GEARBOX

• WEIMA gearbox design
• Built specifically for shredders

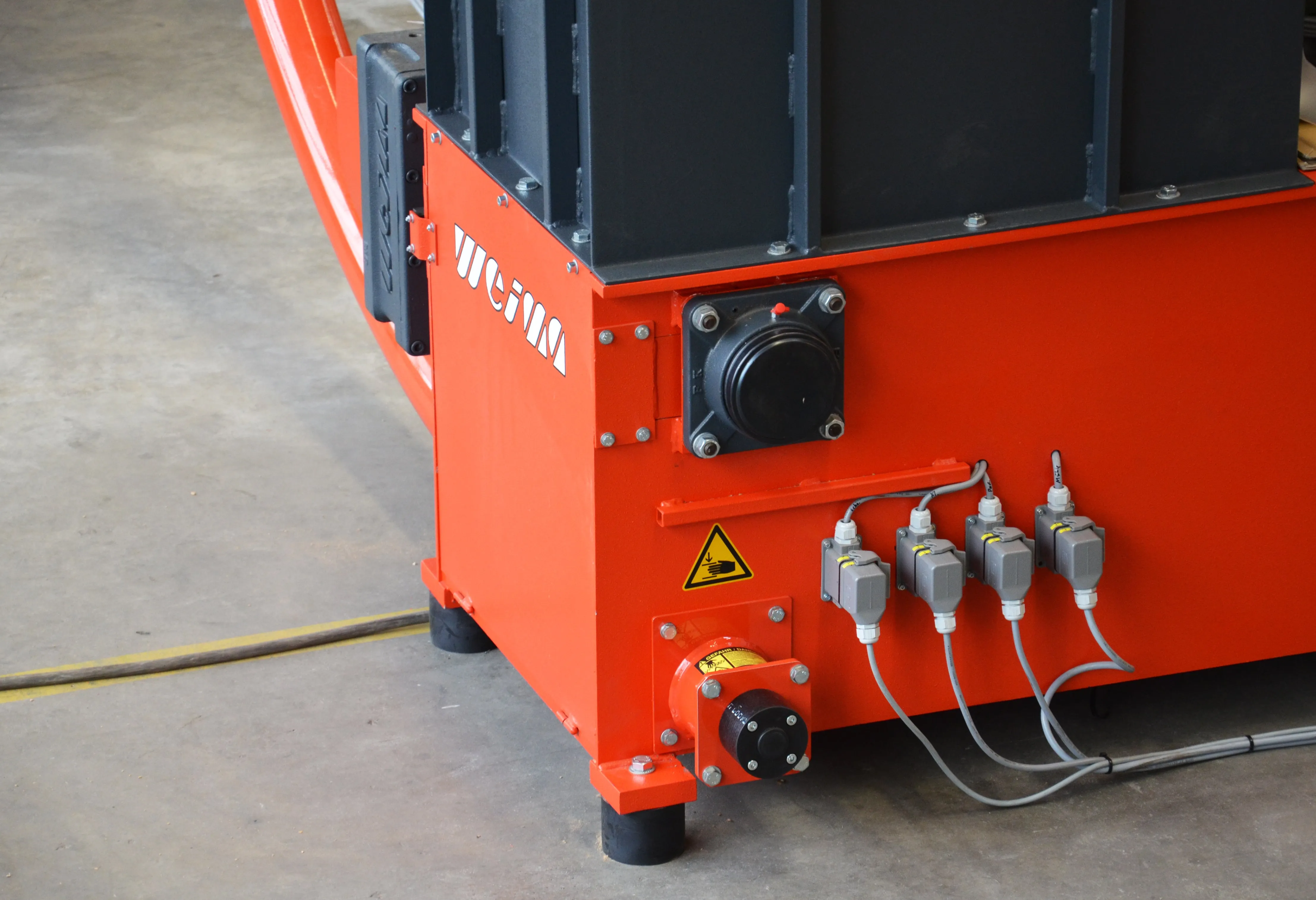

• Limit switch

SEALED BEARING

Spacing gap
Spatter ring
Dust seals

TECHNICAL SPECIFICATIONS	Woodchuck	WL 4	WL 6	WL 8
Feed Opening [mm]	600 × 800 / 1.050	600 × 800 / 1.050	800 × 1.000 / 1.250	1.000 × 1.000 / 1.250
Rotor diameter [mm]	252	252	252	252
Rotor width [mm]	600	600	800	1000
Rotor speed [rpm]	60–100	60–100	60–100	60–100
HP	25 HP	30 HP	30 HP	35 HP
Tools [knives items]	14 / 28	14 / 28	21 / 42	27 / 54

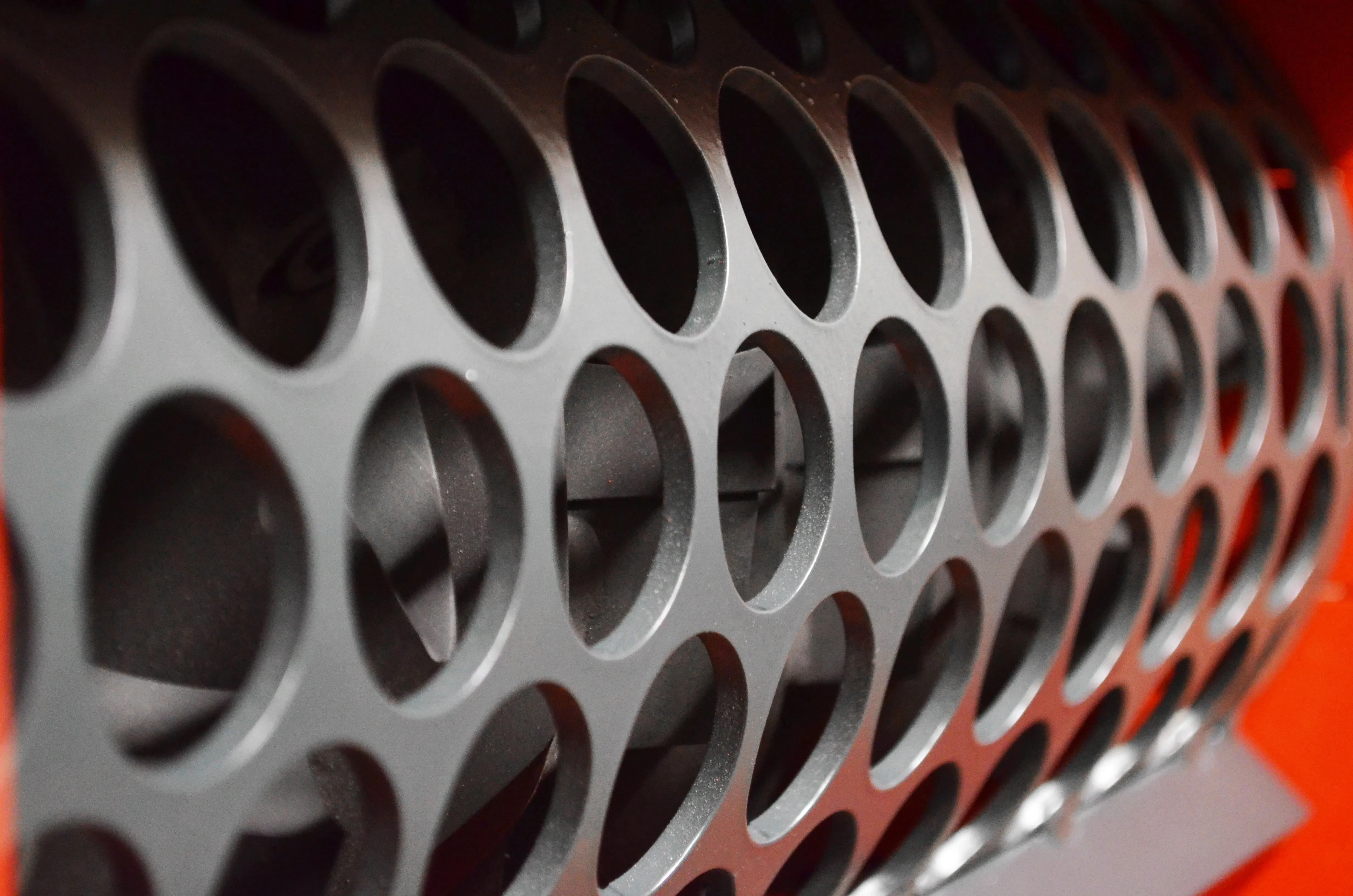

Screen mesh aperture [mm]	10–40	10–40	10–40	10–40
Extractor noozle-Ø [mm]	160	160	200	200
Air speed [m/sec]	28	28	28	28
Weight [approx. kg]	1300	1300	2000	2400
