Product Details
＋

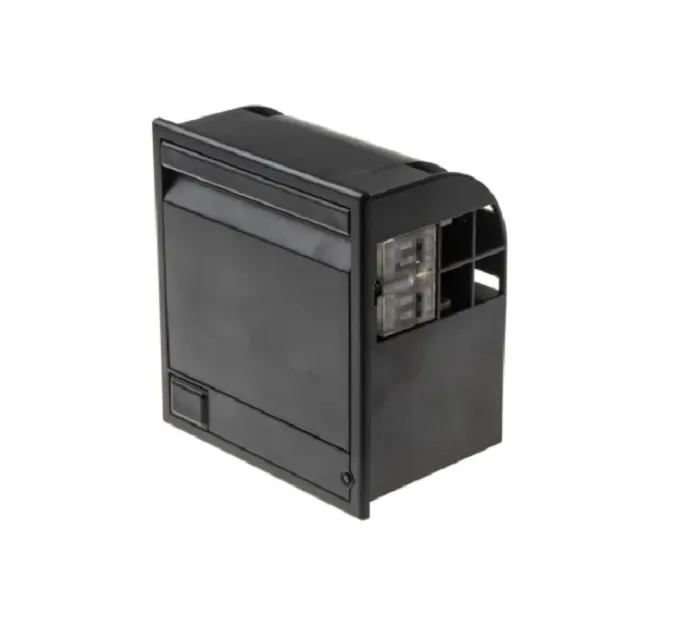

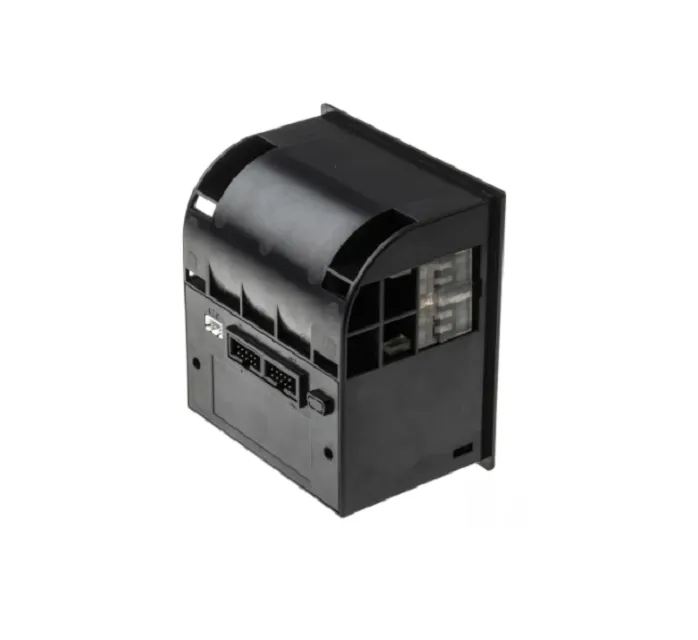

This RS Pro panel mount printer features a Seiko brand fixed head thermal line printer mechanism with a guillotine auto-cutter and anti-blockage design. It also has a large paper capacity. It has an electrical rating of 9-24VDC /- 10%/2A. Interfaces featured are RS232/Parallel USB/RS485. This printer has a resolution of 8dpmm with 384 dots per line. Effective printing width 48mm. Print speed 100mm/s.
Features and Benefits
- Partial/full auto-cut
- 60mm big paper roll support
- Simple drop-in easy paper loading for operational efficiencies
- Data input RS232/Parallel USB/RS485
- Compact dimensions; Height 109mm, of 101mm, depth 68mm
- Paper width is 57.5mm ( /- 0.5mm)
- Reliable long-life expectancy of MCBF 5 million lines.
- High speed printing 100mm/s.
- Robust, stylish design that is easily embedded into many devices.
Applications
- Receipt printing
- Medical/Healthcare equipment
- OEM Machines
- Test and measurement
Specifications:
- Paper Width 58mm
- Resolution 8 dots/mm, 384 dots/line
- Cutout Height 125mm
- Cutout Width 132mm
