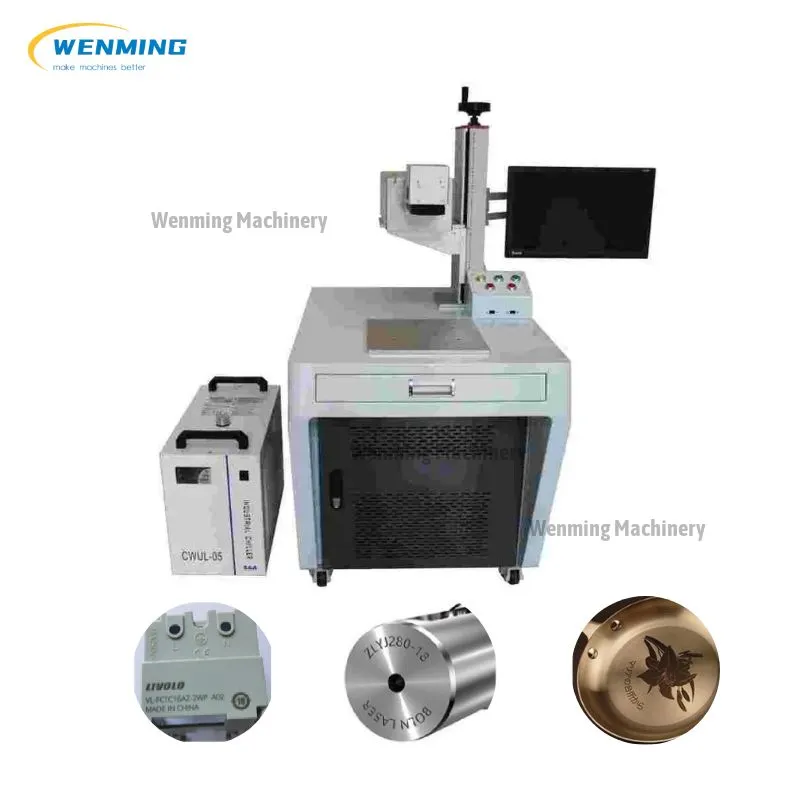

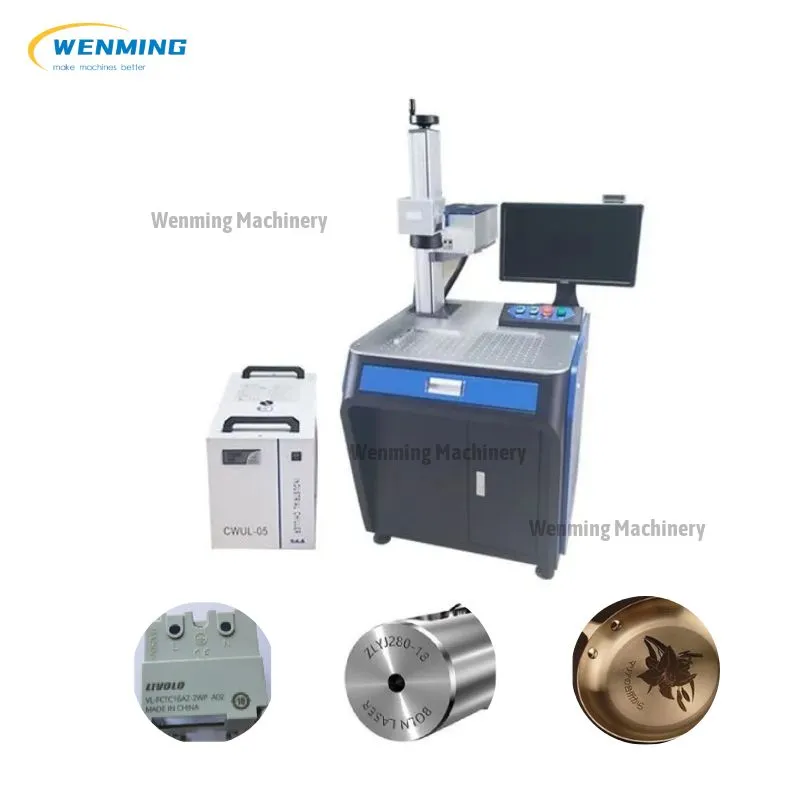

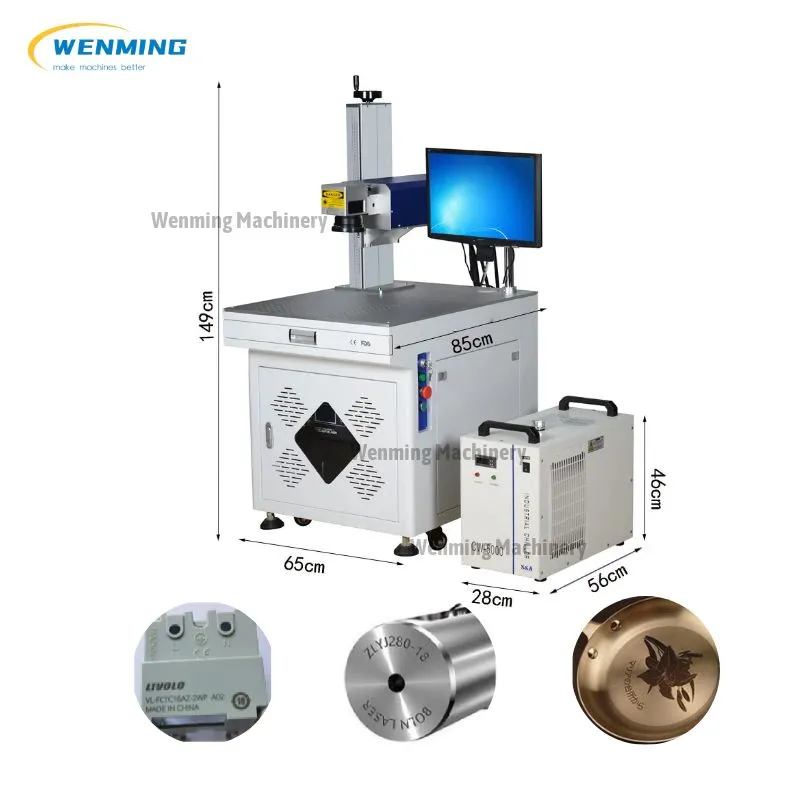

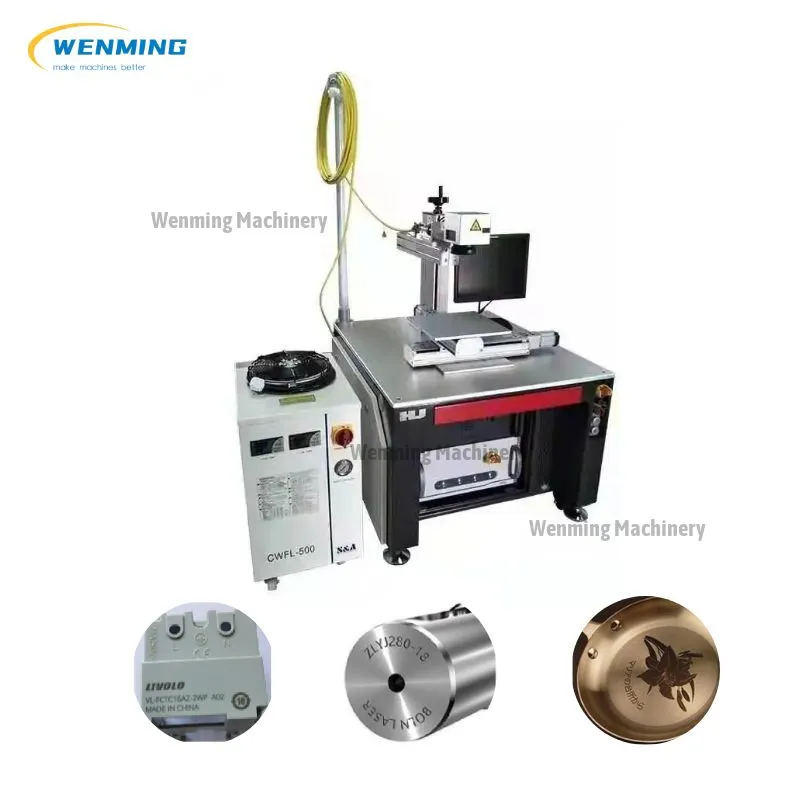

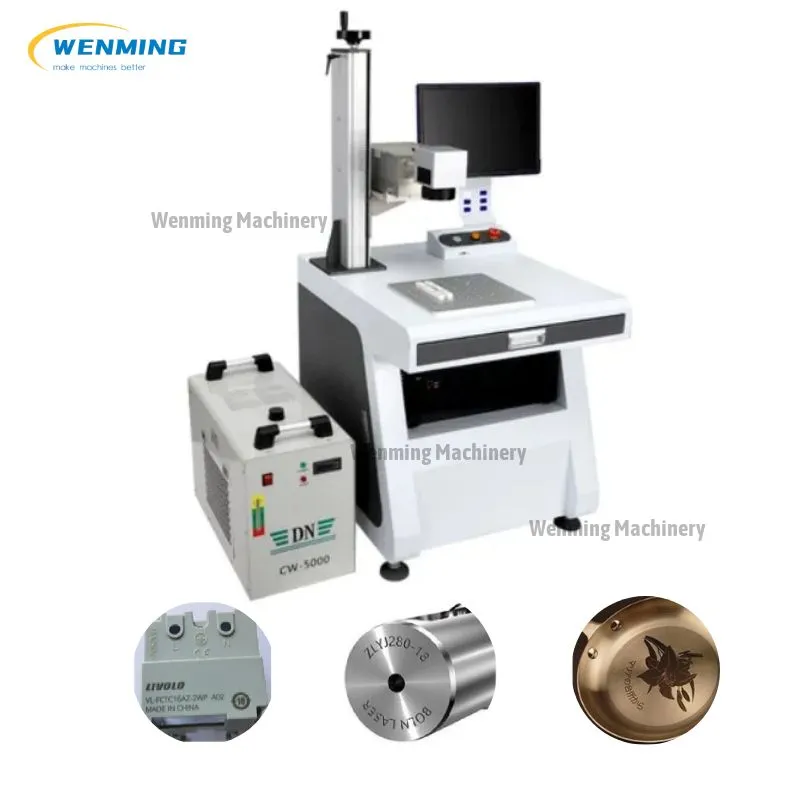

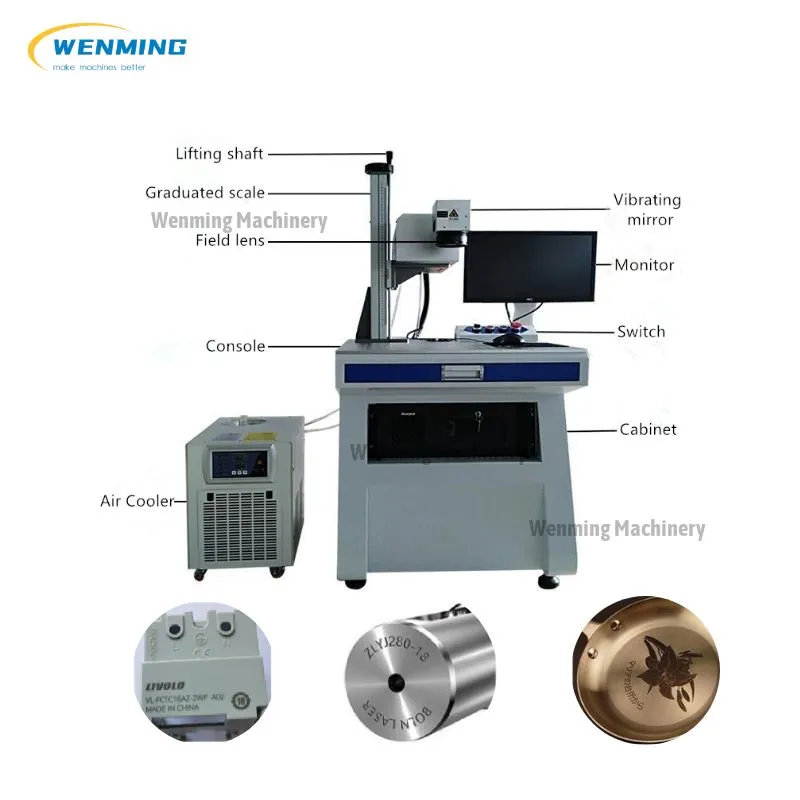

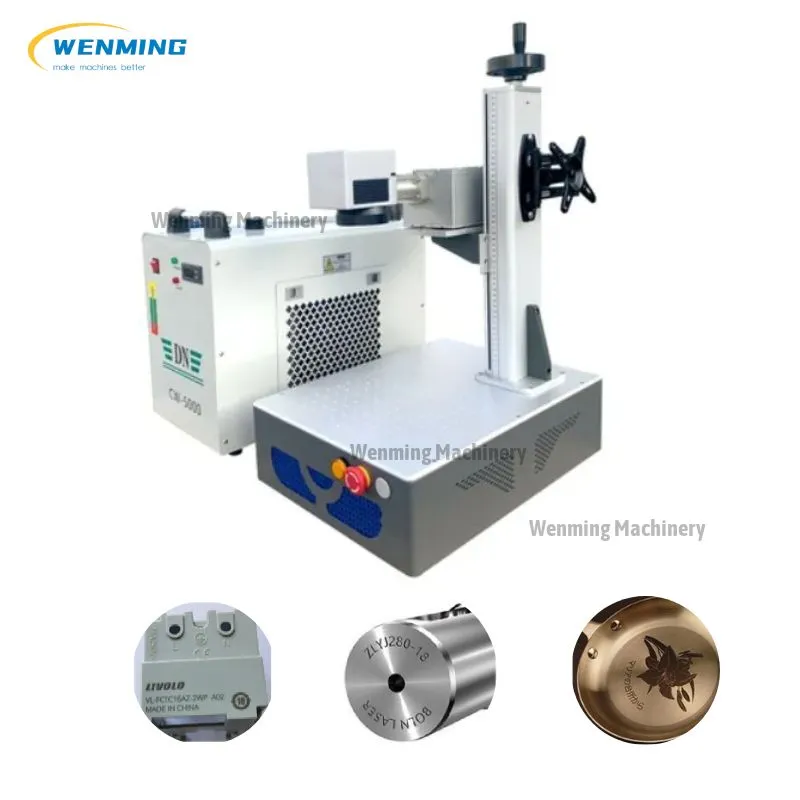

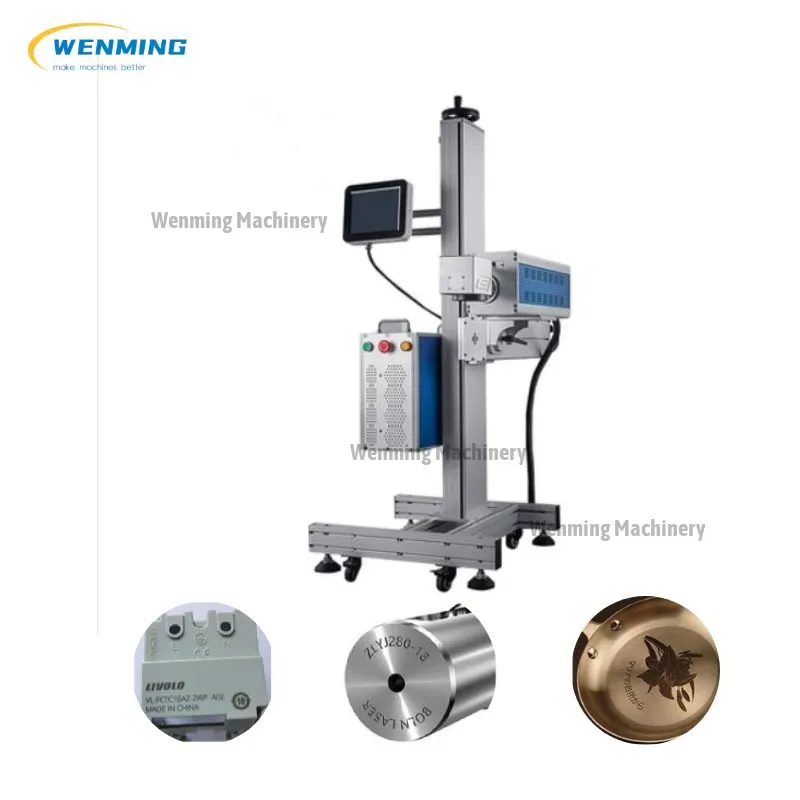

Laser Engraver For Steel Galvo Scanner Laser Engraver Laser Marking Machine
1.Product introduction of Laser Engraver :
UV lasers offer an extremely fine laser spot for microfine marking and processing special materials where higher quality results are demanded. In addition to copper, ultraviolet lasers suit a wider range of materials. They provide not only a high-quality beam and smaller focal spot to achieve microfine marking but also a broader range of applications. The tiny heat-affected zone generates no heat effects or material charring. Fast marking speeds and high efficiency are possible. Compact, stable and energy-efficient, these lasers are ideal for microfine marking and engraving, especially in applications like marking and micro-perforating food and pharmaceutical packaging, high-speed scribing of glass, and complex pattern cutting of silicon wafers.
With a durable design and industrial-grade components, these ultraviolet laser marking systems deliver dependable performance for high-volume production environments. A solid-state laser source provides a continuous, low-maintenance solution for years of consistent operation. Precision optics finely focus the beam for clean, sharply defined marks even on curved or irregular surfaces.
User-friendly controls and software simplify selecting pre-programmed marking frames or importing custom patterns to create tailored markings. An unlimited storage library organizes all your logos, graphics, barcodes, dates and batch codes for instant recall during marking operations. Password protection and an audit trail safeguard against unauthorized changes.
For fast, high-quality marking with minimal capital outlay, ultraviolet laser marking systems maximize productivity and profitability across manufacturing. Permanent marks on components, medical devices, labels or consumer goods provide traceability and brand security. Discovering the potential of these advanced yet affordable ultraviolet laser marking solutions is inevitable.
2.Technical parameters of Laser Engraver :
|
Technical Indicators |
WM-ZGJG |
|
|
Laser parameters |
laser |
UV laser |
|
Laser wavelength |
355nm |
|
|
Average output power |
3W/5W/10W |
|
|
Laser life |
100000Hour |
|
|
Modulation frequency range |
20kHz~80kHz |
|
|
Mirror parameters |
Maximum Linear Speed |
8000mm/s |
|
resolution |
0.001mm |
|
|
Repeatability |
0.003mm |
|
|
Optical Output Characteristics |
Marking range |
F=160mm,scope175*175mm |
|
Minimum Line Width |
0.01mm |
|
|
Minimum character height |
0.2mm |
|
|
cooling system |
cooling method |
Precise temperature control of high-efficiency water chiller |
|
system property |
laser power supply |
0.5KW/AC220V/50Hz |
|
Optical path lifting platform |
(cabinet type) |
|
|
Environmental requirements |
0~25°C, humidity≤90% |
|
