Description:

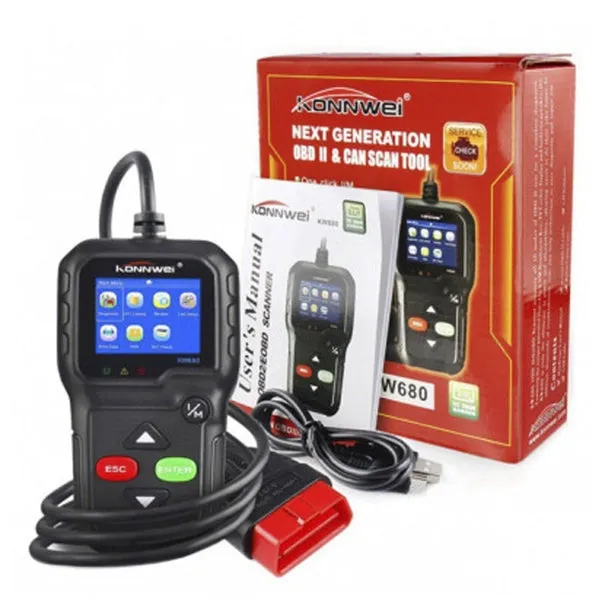

The Konnwei KW680 Diagnostic Scan Tool is a powerful yet user-friendly device, designed for small workshops and DIY enthusiasts who need a reliable solution for quick and efficient vehicle diagnostics. Packed with features typically found in higher-end tools, the KW680 allows you to perform comprehensive diagnostic scans with ease. Whether you're checking engine codes, monitoring live data, or ensuring emissions readiness, this versatile scan tool has you covered. Compatible with all 1996 and newer vehicles, both domestic and imported, the KW680 is your go-to device for accurate and fast diagnostics.

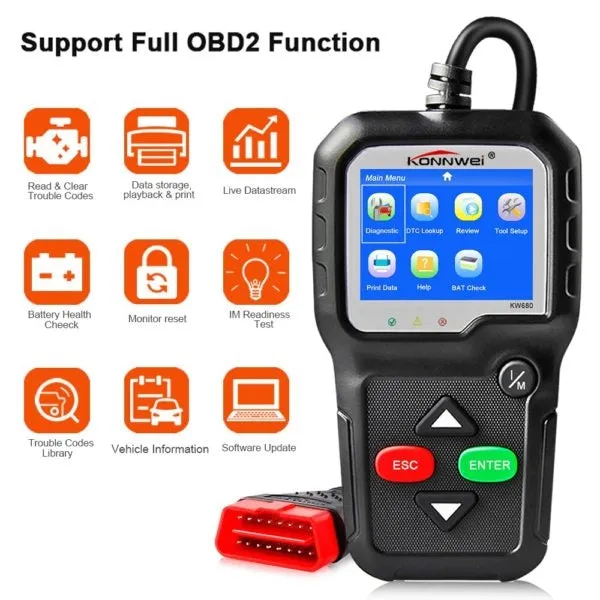

Key Features:

• Universal Vehicle Compatibility: Works on all 1996 and newer vehicles with OBDII and CAN protocols, including both domestic and imported models.
• One-Click Readiness Key: Features a unique patented readiness key for quick state emissions checks and drive cycle verification.
• Visual and Audible Readiness Indicators: Bright color-coded LEDs and a built-in speaker provide both visual and audible verification for emissions readiness.
• Comprehensive Code Retrieval: Retrieves generic (P0, P2, P3, U0), manufacturer-specific (P1, P3, U1), and pending codes, helping you easily determine the cause of the Check Engine Light (MIL).
• Enhanced On-Board Monitoring: Supports Enhanced OBD2 Mode 6 for advanced on-board monitoring test results for specific monitored systems.
• Live Data Monitoring: Reads and displays live PCM datastream, O2 sensor data, and EVAP system test data in both text and graph modes.
• Freeze Frame Data Viewing: Allows you to view freeze frame data to capture the condition of the vehicle at the time a fault is detected.
• Battery Voltage Monitoring: Provides real-time monitoring of battery voltage to ensure optimal vehicle performance.
• Troubleshooter Code Tips: Offers code tips to help technicians quickly identify the root cause of trouble codes, saving time on diagnosis and repair.
• Built-In DTC Lookup Library: Includes a built-in DTC lookup library with display definitions for easy and accurate diagnosis.
• Internet Updateable and Upgradeable: Stay up-to-date with the latest features through easy internet updates.
• Data Printing via PC: Print diagnostic data directly from your PC for detailed analysis and record-keeping.

Technical Information:

• Display: TFT color screen with a resolution of 320x240 dpi.
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -20 to 70°C (-4 to 158°F)
• Power Source: 8 to 18 V provided via the vehicle.
• Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
