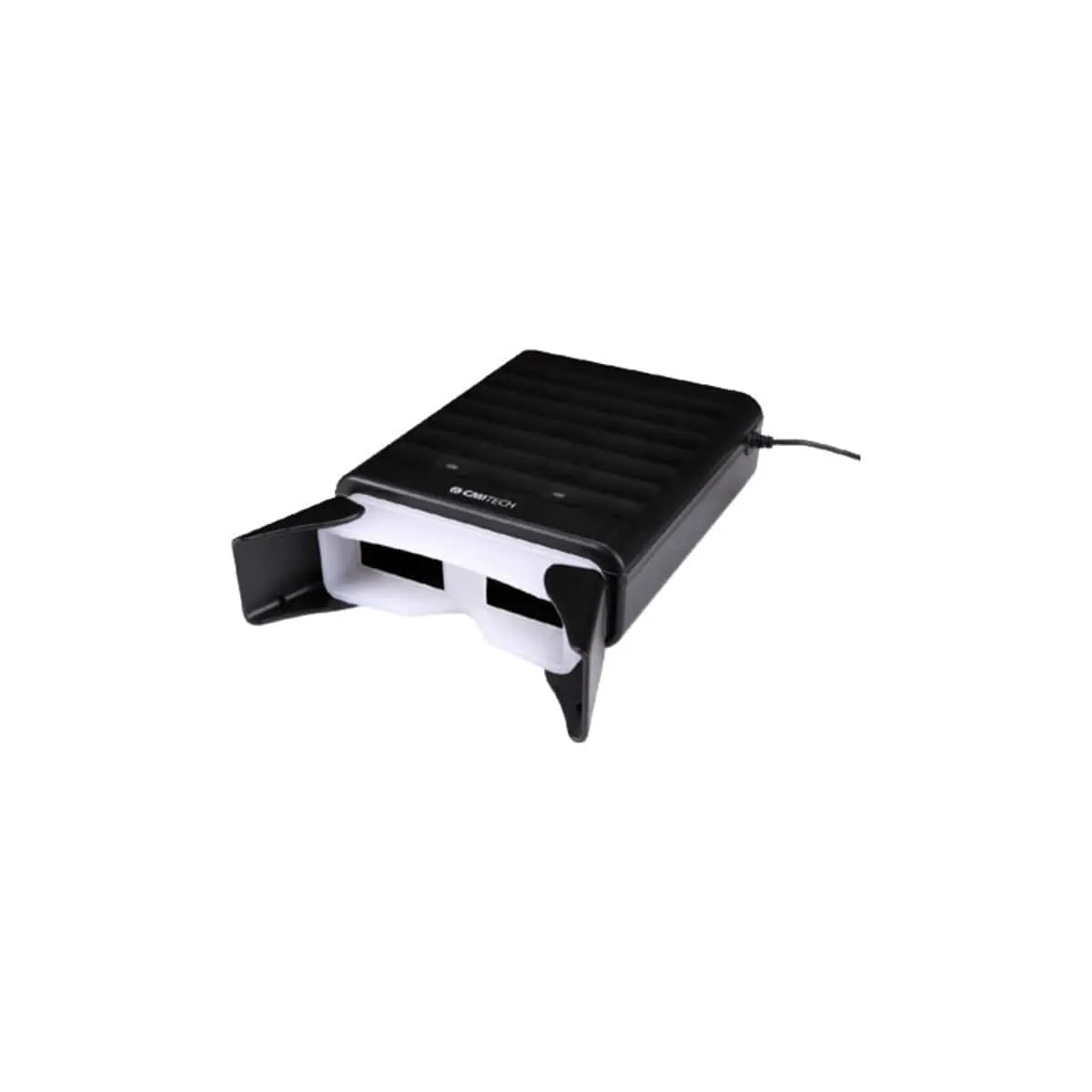

The CMITech BMT-20 is a binoculars-type iris biometrics imaging device that quickly captures highest quality iris biometric images. Exceeding industry standards for image quality, this system optimizes matching accuracy, essential in very large scale deployments for which de-duplication is a core deliverable. Easy to use, the system can be reliably positioned by the subject with minimal instructions, or by an operator with the aid of positioning feedback LEDs on the top of the imager's housing.
The patentpending optical design of the BMT-20 includes expanded depth of field and a very large interpupillary distance range, providing effortless capture for subjects of all ages. Intended for applications in which subjects have limited prior experience with biometrics devices, the BMT-20 is ideal for enrollment programs of all sizes, including those involving very young children. Designed with the latest in optical and system control technology by one of the leaders in the industry, the BMT-20 is physically robust, highly reliable and durable.
This system meets the elevated IP64 intrusion protection standard and is sealed against dust and other airborne particles to provide extended life in harsh environmental conditions. CMITech's products and technology are leading the industry in cost effective and easy to use iris recognition solutions serving the full range of identification and authentication use cases, including physical and logical access control, national identity, law enforcement, border crossing and immigration control applications.
CMITech BMT-20
- State-of-the-art-optical design
- Single sensor design
- Long internal optical path
- Dedicated, on-board image processor supports very high speed, simultaneous capture of subject's irises
- Extended depth of field
- Wide inter-pupillary distance tolerance
- All solid-state design-no moving parts
- Meets IP64-6 specifications for particulate intrusion prevention
- Near-real time off-axis gaze detection
- Internal white LED
- Motion detection
- Foldable side visors and forehead positioning rest
- External color LED positioning indicators
- Position sensor
- High temperature range
- Powered by USB 2.0 cable
Tech Specs
| Dimensions | 210 x 161 x 58 mm (8.6 x 6.3 x 2.3 inches) |
| Image output |
Meets
or exceeds ISO 19794-6
|
| MTF/spatial resolution | Exceeds 4.0 Ip/mm @ > 60% contrast |
| Iris image pixel resolution | 640 x 480 pixels, 8 bits. Supports multiple formats |
| Operational path distance | 350 to 380 mm |
| Depth of field | 30 mm (1.2 inches) |
| Inter-pupillary distance covered | 40 to 90 mm (1.6 to 3.5 inches) |
| Time of capture | About 1.0 second, from time of head placement |
| IR illumination for iris imaging | Dual LED: wavelengths of 850 nm nominal (about 50%); and 750 nm nominal (about 50%) |
| Internal LED for pupil contraction | Broadband visible (white) |
