The Belkin Hi-Speed USB 2.0 7-Port Hub, F5U237 Rev.3, provides 7 downstream USB ports that are compatible with both USB 1.1 (Low Speed and Full Speed) devices, as well as with USB2.0 (Hi-Speed) devices. This means that the Hub is “backward-compatible” with all of your current USB 1.1 devices as well as the new generation of “Hi-Speed” USB 2.0 devices. This may include such peripherals as scanners, printers, mass storage devices, and high resolution cameras. The Hub is self powered, which allows the cascading of devices with additional hubs, so that up to 127 USB devices to be connected to a single port.

The Belkin Advantage

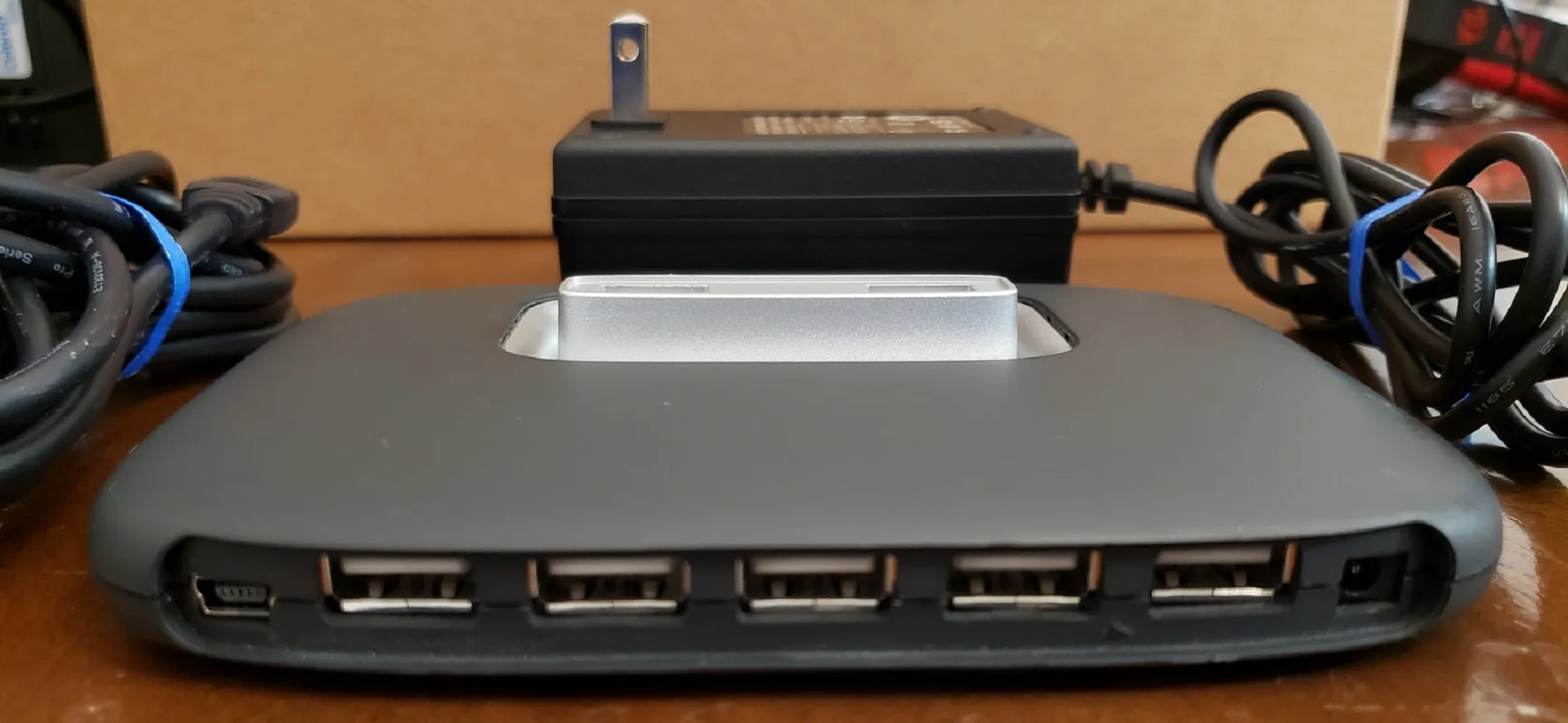

An exciting new feature unique to the Belkin 7 port hub are the two vertically mounted downstream USB ports that offer easy access for temporary connections such as USB thumb drives, media readers, and personal convenience accessories such as USB lights and fans. The Hub also provides 7 port status LEDs, and 1 master power LED.

★ MPN: F5U237 Rev.3
★ SKU: 6474-B-HSUSB2-7PH-F5U237Rev.3
★ Color: Black
★ Upstream Ports: (1)
★ Downstream Ports: (7)
★ Per-port Voltage: DC 5V
★ Per Port Current: 500mA (max)
★ Power Mode: Self-Powered
★ Operating Temperature: 5ºC ~ 40ºC
★ Storage Temperature: -20ºC ~ 60ºs
★ Enclosure: ABS

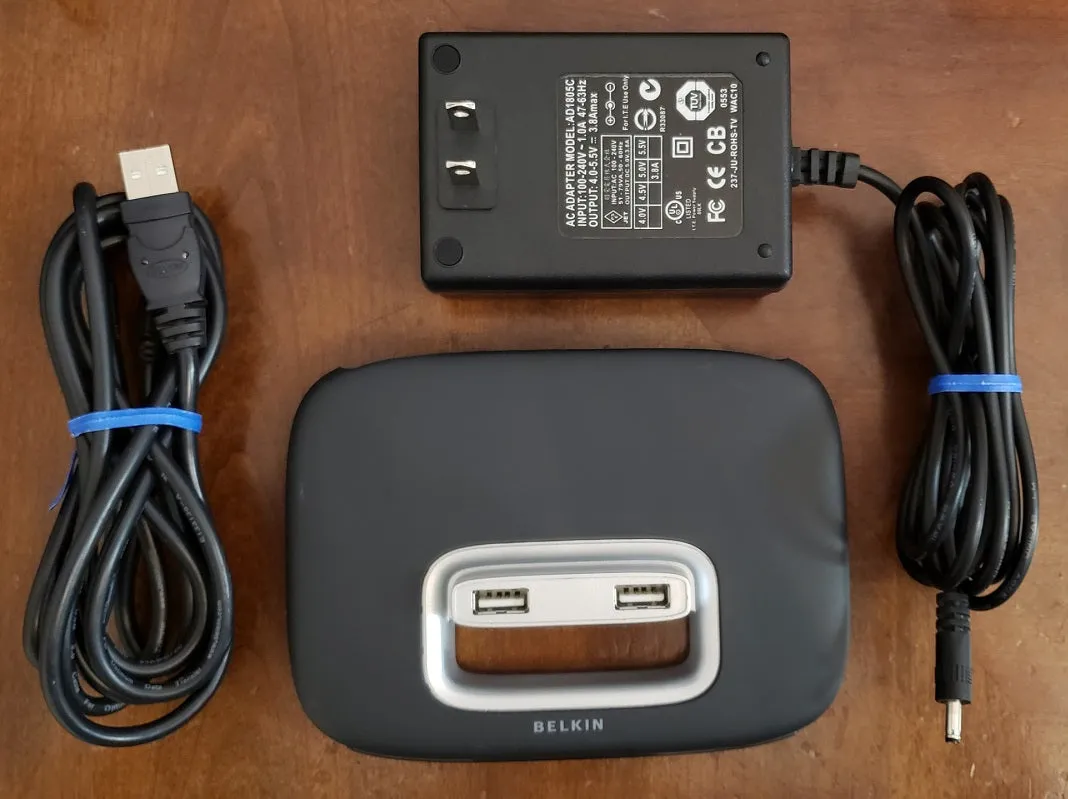

★ Power Supply:

• Output: DC 6V, 4A
• Plug Size: 3.5mm (outer) 1.0mm (center)
• Plug Polarity: Center Positive

★ Main Power LED Color Definitions:

• Off: Not Operational
• Red: Operational Port

★ Status LED Color Definitions:

• Off: Over Current Condition
• Green: Fully Operational

★ Product Dimensions: 10.1 x 6.8 x 3.6 inches
★ Product Weight: 14.4 ounces
